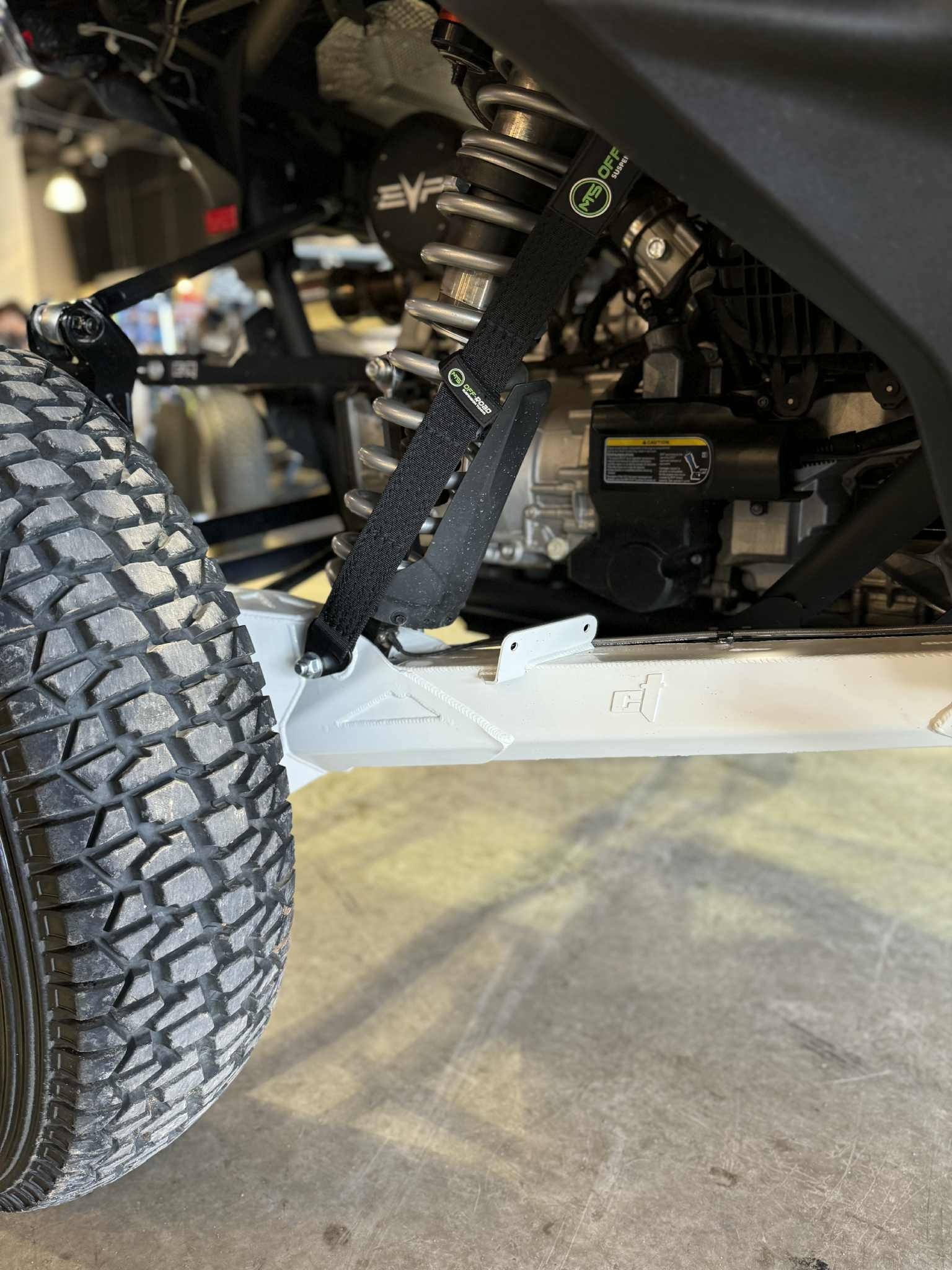

Maverick R Trailing Arms

There were engineered from the ground up specifically bashing through the rocks with race proven reliability.  We spent weeks in Johnson Valley CA testing with Pro drivers to create trailing arms that slide over the rocks as easy as possible and don't get hung up.  Our trailing arms provide a maximum of 4" of clearance over stock and 2.5" in front of the tire to the chassis for less hang ups and better tire placement.

Like all of our parts, the trailing arms includes sealed bottom bungs for the brake line mounting points to keep the arm completely sealed in M6x1.0.  The sway bar mounting point has been raised roughly 2 inches from stock as this was our number 1 hang up point in testing when it was in the stock position.  Smart shock tabs for sensor mounting and tabs for wire management are also added to all trailing arms.

Every set of trailing arms is backed by our no BS lifetime warranty.

Wearable items are WSSX14T uniballs at the frame pivot point.

There are provisions for gravel flaps on the trailing arms and those can be supplied for an additional price upon request.

Short trailing arms are for standard and XRS 2 seat models.

Long trailing arms are for all 4 seat models and 2 seat XRC models.

These parts have a lead time of roughly 4 weeks or less.
